Installation Overview

We will give you a quick rundown about the easy and straightforward installation of an MPI Exhaust system. Available as an easy at-home install Clamp together system or as a professional weld together system.

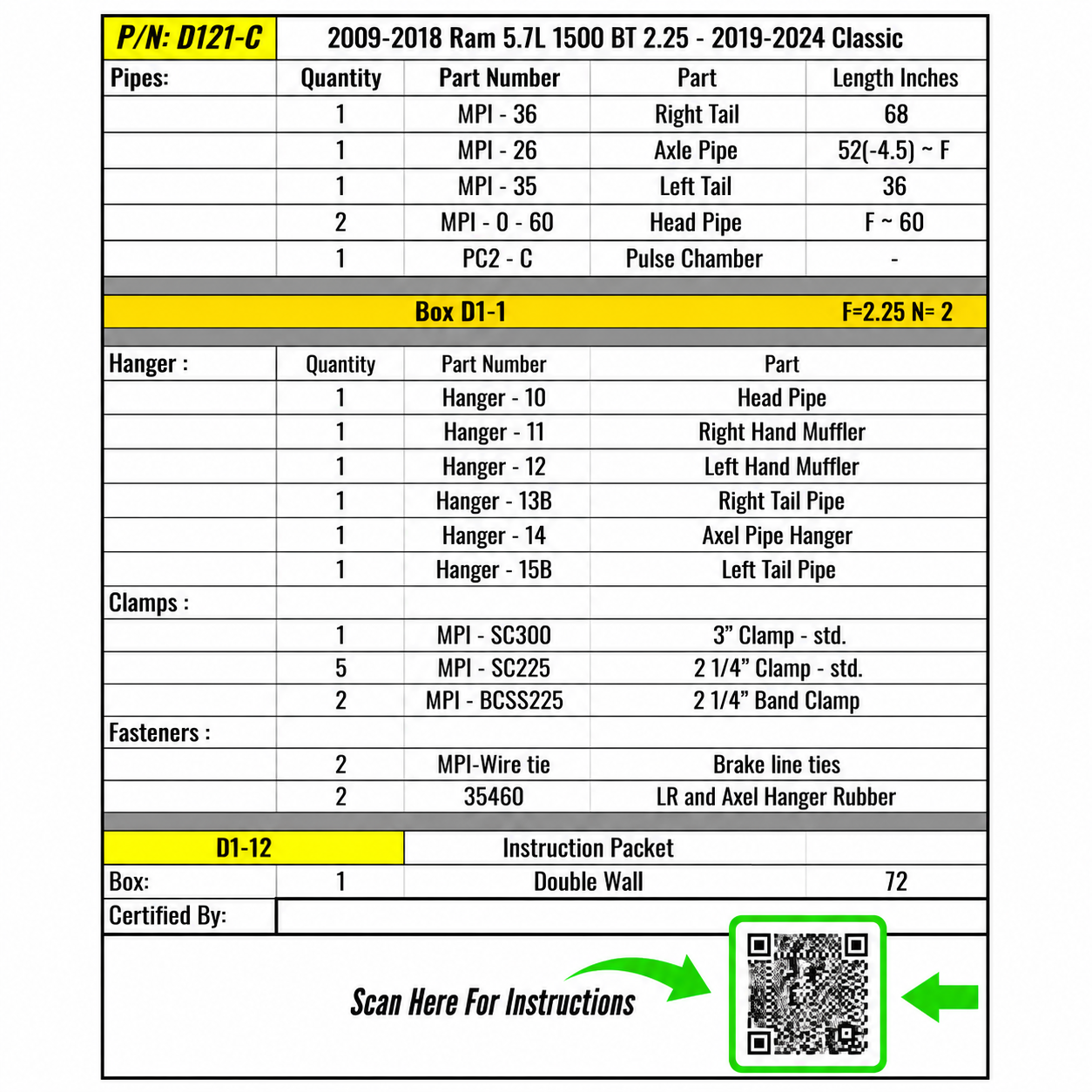

The instructions will ship with all kits for that specific application. If you have any questions about your installation or when you are installing an MPI Exhaust system, call us with any question.

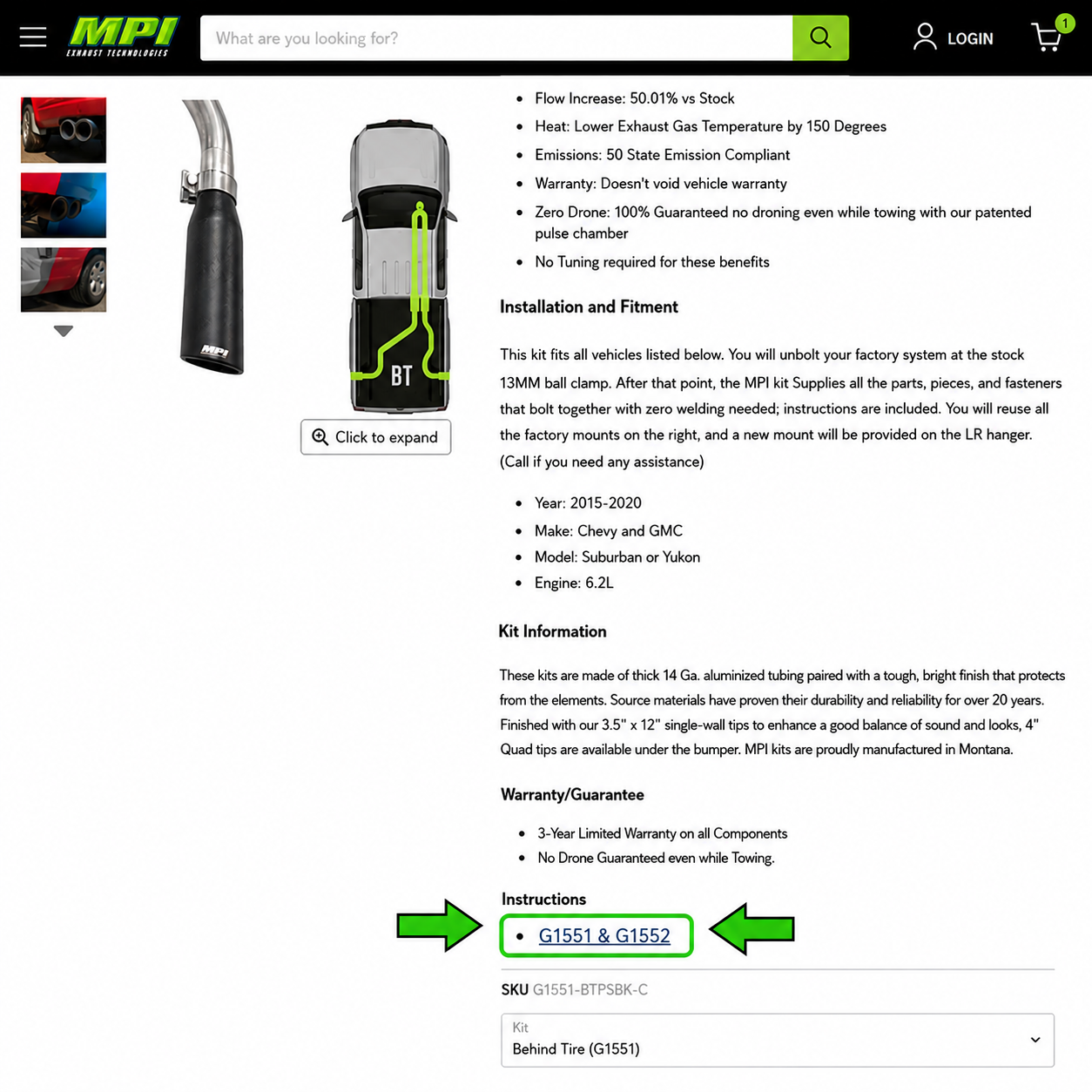

Click here to find your trucks specific installation instructions

Wheelbase -

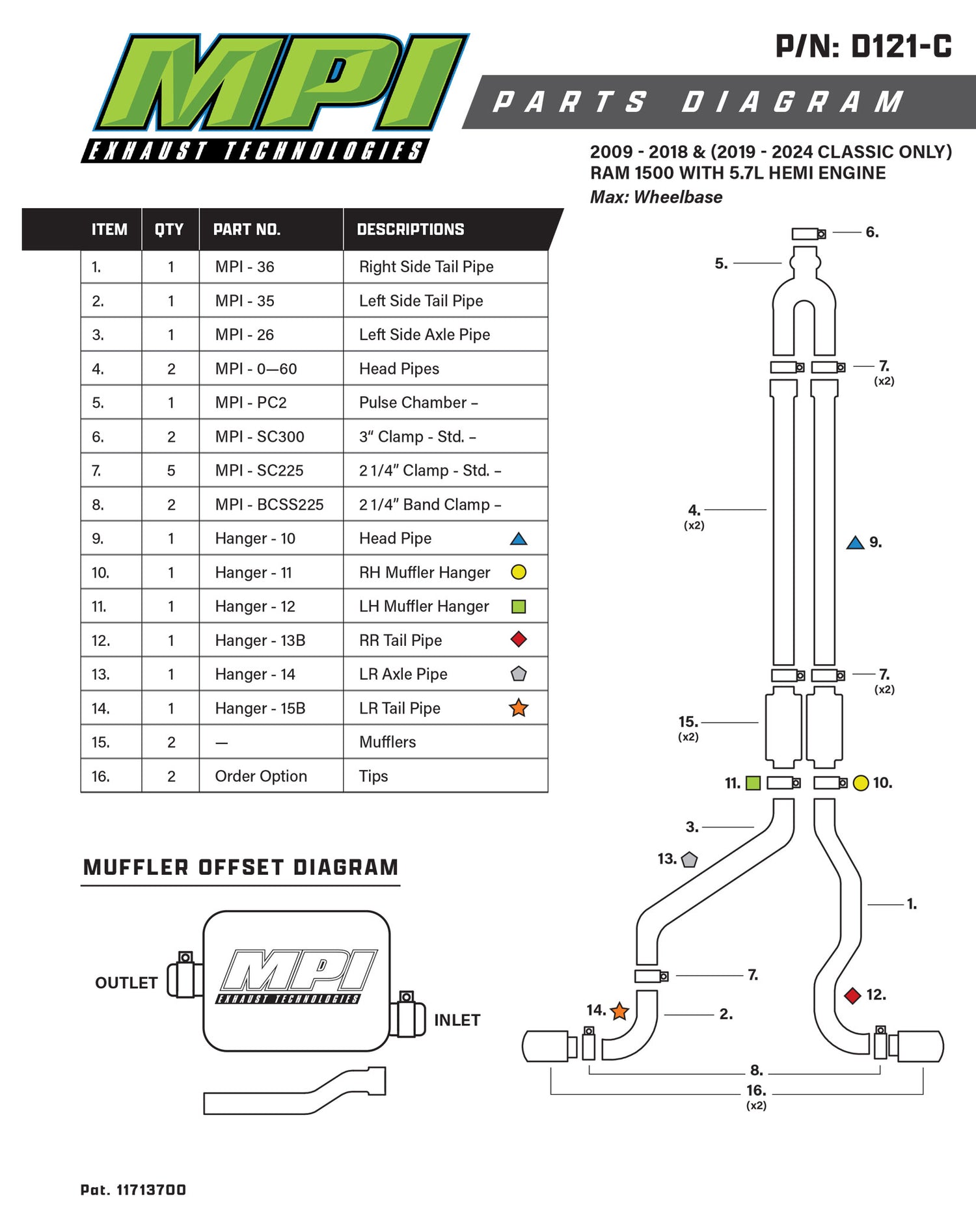

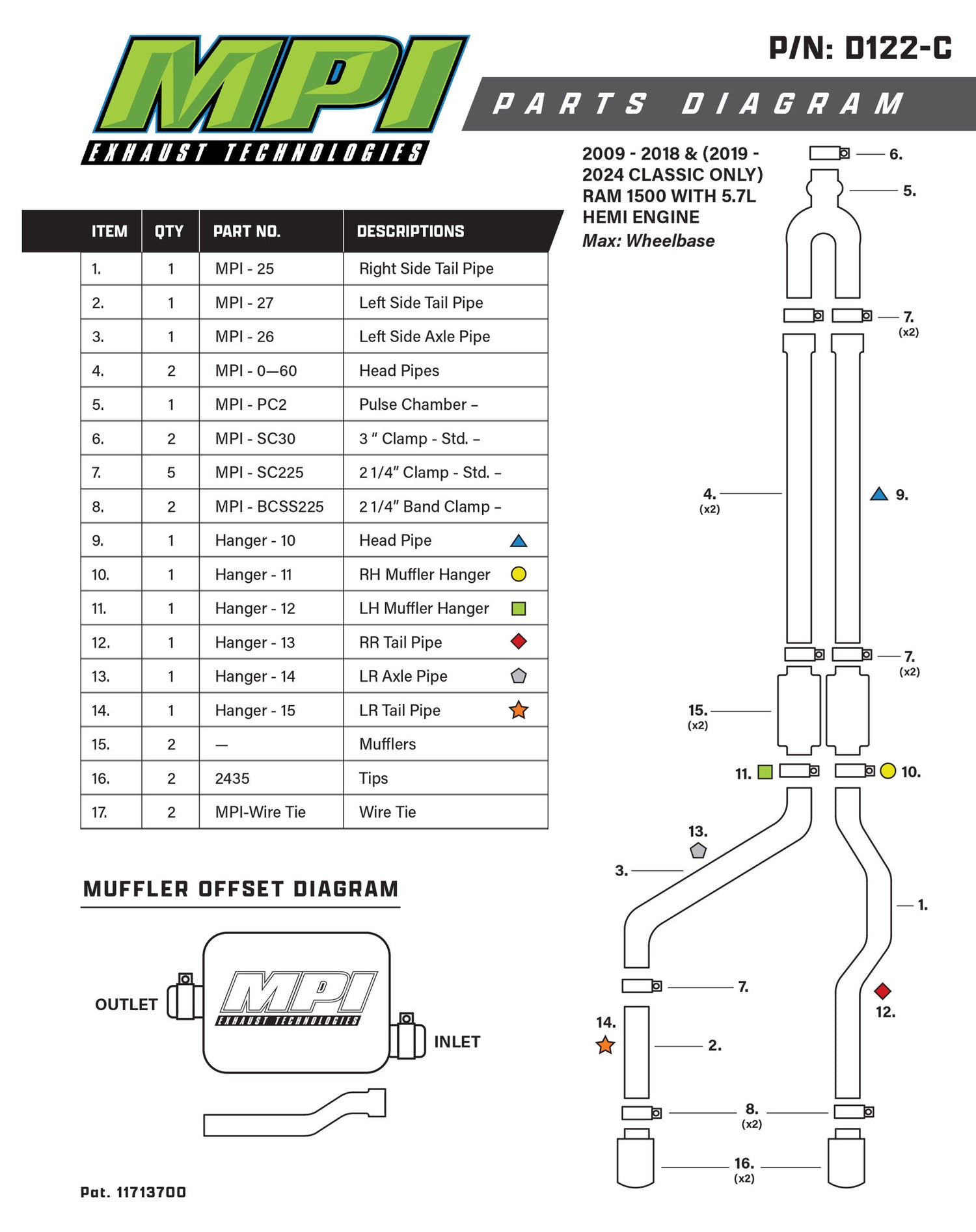

Look at the illustration below for reference. All kits are designed for maximum wheelbase for that specific make and body style.

Four-door long box trucks have the longest wheelbase. You can see the difference on the right-side example. All kits are shipping with full-length head pipes to be compatible with that maximum length.  Long head pipes eliminate extra exhaust joints and extend the life of the system. It also looks a lot nicer.

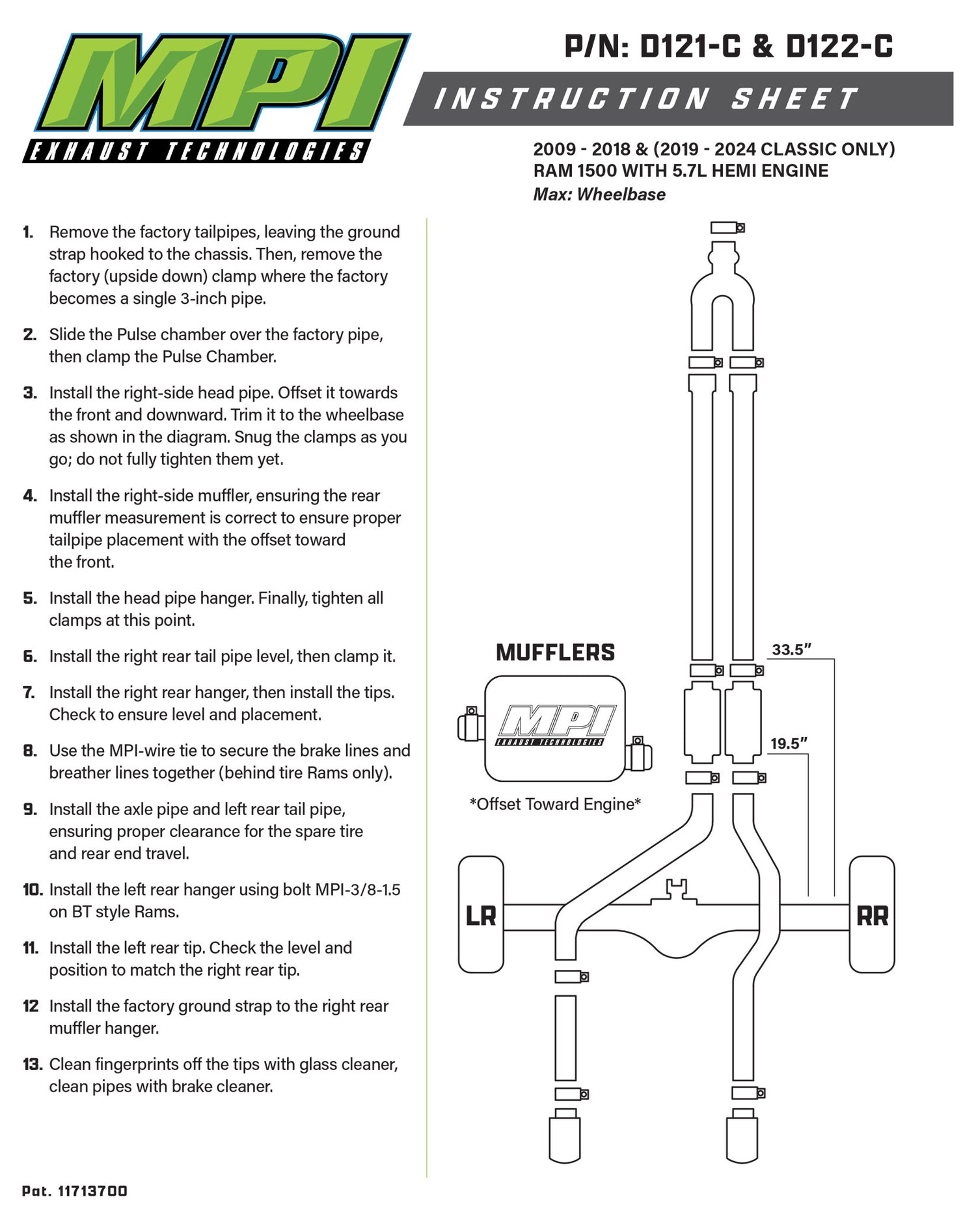

For all wheelbase trucks, you remove the factory exhaust (cutting locations provided in the instructions) and then install the MPI Pulse Chamber. Install one head pipe. Take a tape measurement from the tube of the rear end and mark the distance on the head pipe per your kit instructions. This sets the length of the head pipes to your truck's wheelbase. Cut both head pipes to this measurement and install them.

Slipping on the muffler pack to the head pipes is next. Now you will get a measurement from the rear end tube to the case of the muffler. When you install the mufflers ensure this measurement is precise so the tailpipes will fit perfectly and the rear muffler hanger kits will also fit as intended. This also makes sure you have proper clearances for rear-end up/down travel. Right and left tailpipes are next and then the tips. Careful previous measurements make this part go much smoother.

Remember, if you're unsure about any step of the installation process, it's always best to consult MPI Exhaust Technologies. Proper installation ensures optimal performance and longevity of your exhaust kit.

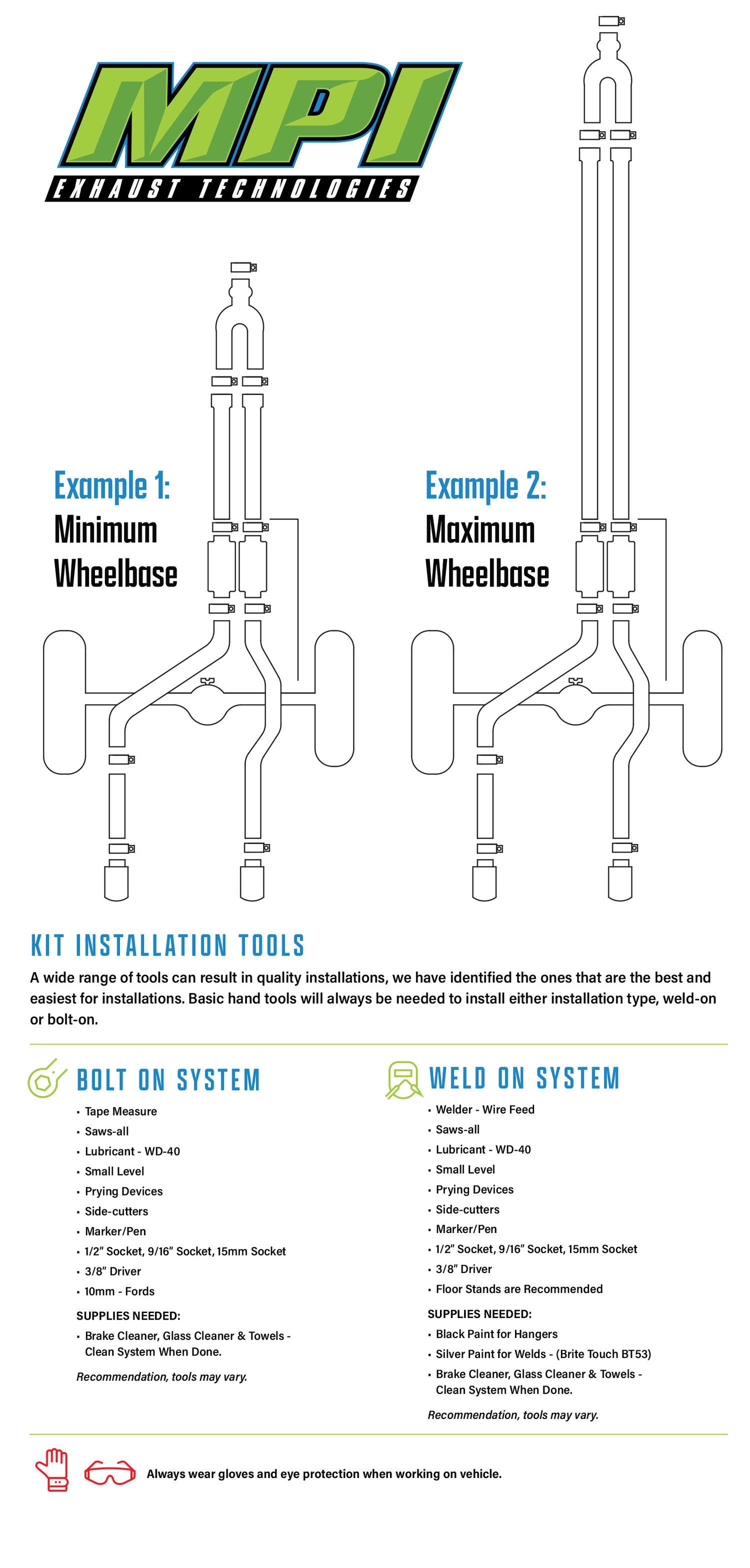

Tools :

Tools needed for our kit installation are shown below. There is a wide range of tools that will result in quality installations but these are the ones we find best and easiest for installations. Basic hand tools will always be needed to install either installation type, Weld-on or bolt-on.





 Download the instructions below:





Ford 5.0L 2009-2024 MPI Performance Plus Clamp-on Series

Ford 5.0L 2009-2024 Truck Dual Exhaust Kits - Clamp-on

Ford F250 F350 2017-2024 Truck Bullnoze - Clamp-on

Ford F250 F350 2017-2024 Truck Dual Exhaust Kits - Clamp-on

Ford 2017-2024 6.2L & 7.3L Exhaust Kits - MPI Performance Plus Clamp-on Series

Ford 6.2L 2010-2016 Truck Dual Exhaust Kits - Clamp-on

Ford 6.2L 2010-2016 MPI Bullnoze Exhaust Series

Ford 2.7L & 3.5L 2009-2024 Truck Dual Exhaust Kits - Clamp-on

Ford 6.2L 2010-2016 Truck Dual Exhaust Kits - Weld System

Ford 5.0L 2009-2024 Truck Exhaust Kits - Weld System

Ford F250, F350 2017-2024 Truck Dual Exhaust Kits - Weld System



GM 5.3L 2008-2013 Truck Dual Exhaust Kits - Clamp-on

GM 5.3L 2014-2018 Truck Dual Exhaust Kits - Clamp-on

GM 5.3L & 6.2L In-Bumper 2019-2024 Truck Exhaust Kits - Clamp-on

Chevy 2019-2024 5.3L Truck Exhaust Kits - Clamp-on

Chevy 2019-2024 6.6L Truck Exhaust Kits - Clamp-on

GM 5.3L 2008-2013 MPI Performance Plus Series

GM 2019-2024 5.3L MPI Performance Plus Series

Chevy/GMC 5.3L 2008-2013 - MPI Bullnoze Exhaust Series

Chevy/GMC 5.3L 2014-2018 - MPI Bullnoze Exhaust Series

Chevy/GMC 2019-2024 5.3L - MPI Bullnoze Exhaust Series

Chevy/GMC 6.6L 2019-2024 - MPI Bullnoze Exhaust Series

GM 6.0L & 6.2L 2007 1/2-2013 Truck Cat Back Dual Exhaust Kits - Weld System

GM 8.1L 2001-2007 1/2 Truck Cat Back Dual Exhaust Kits - Weld Together

GM 5.3L 2008-2024 Truck Dual Exhaust Kits - Weld System

GM 6.0L & 6.2L 2014-2023 Truck Dual Exhaust Kits - Weld System

Chevy 2019-2024 6.6L Truck Exhaust Kits - Welded System

GM 6.0L 1999-2007 1/2 Truck Cat Back Dual Exhaust Kits - Welded System

GM 4.8L & 5.3L 1999-2007 1/2 Truck Cat Back Kits - Weld



 RAM 5.7L Hemi 1500 2009-2018 Truck Dual Exhaust Kits - Clamp-on

RAM 5.7L 1500 (Classic) 2019-2024 Exhaust Kits - Clamp-on

RAM 5.7L Hemi 1500 2019-2024 Exhaust Kits - Clamp-on

RAM 6.4L 2011-2023 Truck Dual Exhaust Kits - Clamp-on

RAM 5.7L 2009-2018 MPI Performance Plus Series - 1500

RAM 5.7L Hemi 1500 (Classic) 2019-2024 MPI Performance Plus Series

RAM 5.7L Hemi 1500 2019-2024 MPI Performance Plus Series

2009-2018 - MPI Bullnoze Exhaust Series

RAM 5.7L Hemi 1500 2009-2024 Truck Dual Exhaust Kits - Weld System

RAM 5.7L 2500HD 2009-2023 Truck Cat Back Dual Exhaust Kits - Weld System

RAM 6.4L 2011-2023 Truck Dual Exhaust Kits - Weld System

 Toyota Tacoma 1995-2004 3.4L Truck Cat Back Dual Exhaust Kits

Toyota Tacoma 2005-2023 V6 Truck Cat Back Dual Exhaust Kits

Toyota 2014-2021 Tundra 5.7L - MPI Bullnose Exhaust Series

Toyota 2007-2013 Tundra 5.7L - MPI Bullnose Exhaust Series

Toyota 2014-2021 Tundra 5.7L Truck Exhaust Kits - Clamp-on

Toyota Tundra 2007-2013 5.7L Truck Exhaust Kits - Weld System

Toyota Tundra 2014-2021 5.7L Truck Exhaust Kits - Weld System

Mike of MPI Exhaust

Underneath View of a completed 1988 Chevy with a LS3. Paired with Our universal fit PC8 Followed with a Pair of MPI Performance Series Mufflers.
